Description

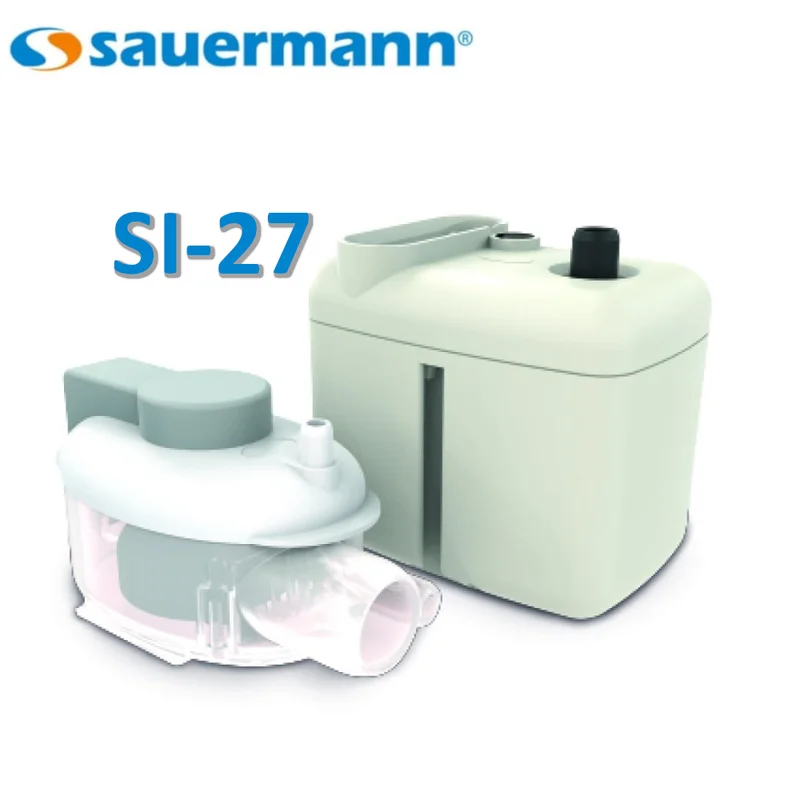

Condensate pump Si-27
Suitable for air conditioners up to 20 kW
Description:
The Si-27 is suitable for air conditioners up to 20 kW. The piston pump technology is specifically designed for draining the condensate produced by these units. Highly reliable in all types of environments, the Si-27 offers one of the quietest sound levels, regardless of the volume of condensate to be drained.
Technical details:
– Maximum flow rate: 20 l/h
– Maximum head: 10 m
– Maximum pressure: 14 m
– Maximum suction height: 3 m
– Insulation class: Double insulation
– Electrical supply: 230V 50/60Hz 14W
– Operating conditions: 100% continuous cycle
– Protection: IP20
– Main package: 20
– Safety switch: NA – NC 8A resistive 250 V
– Detection: Detection block
Advantages:
– Patented technology
– High performance: a single code for a product suitable for air conditioners up to 20 kW.
– High resistance to pollution in any type of environment. Capable of draining small particles.
– Proven reliability.
– Quiet operation
– Reduced noise levels during operation (20 dBA, tested by an independent laboratory).
– The air conditioner power and the volume of condensate to be drained do not affect the noise level of the pump.
– Easy installation
– Compact design.
– Mounting plate allowing wall, pipe, or suspension installation.
– Removable power cable simplifying maintenance and replacement.
– Safety contact
– Energy saving
– Thanks to the high flow rate, reduced operating times, and limited power consumption.
Kit contents:
– Piston pump
– Mounting plate
– Removable power cable (1.5 m)
– Transparent PVC tube Ø int. 6 mm, L 1.5 m
– 6 Rilsan
– Detection block (SI2958, power cable 1.5 m)
– Detection block installation kit:
– Connector Ø int. 15 x L 35 mm
– Vent tube Ø int. 4 x L 75 mm
– Mounting slide
– Adhesive
Product code: SI27CE01UN23
