Description
Series: 105308

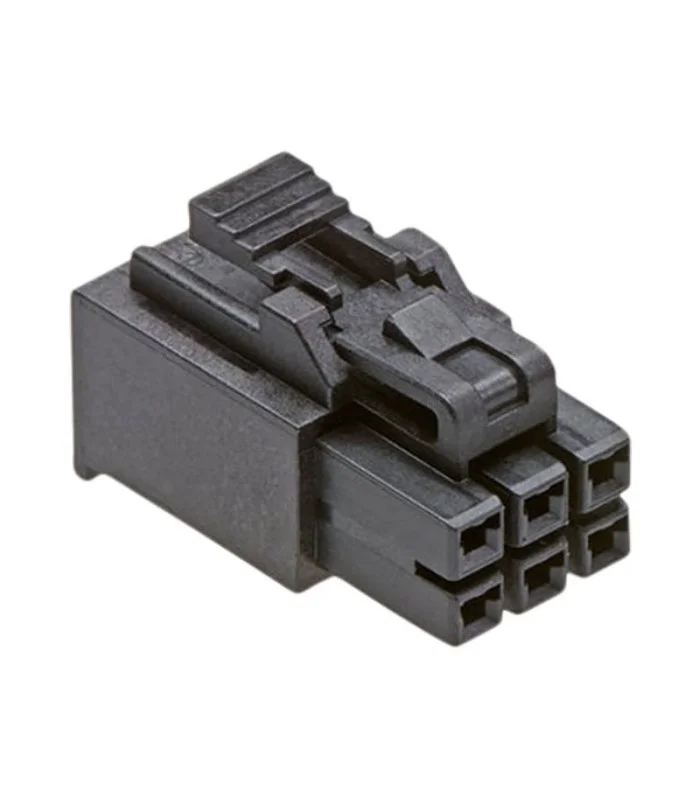

Overview: Nano-Fit Power Connectors
Product Name: Nano-Fit
Circuits (maximum): 6
Color – Resin: Black
Flammability: 94V-0
Gender: Receptacle
Glow-Wire Capable: Yes
Keying to Mating Part: Yes
Lock to Mating Part: Yes
Material – Resin: Nylon
Number of Rows: 2
Panel Mount: No
Pitch – Mating Interface: 2.50mm
Pitch – Termination Interface: 2.50mm
Polarized to Mating Part: Yes
Temperature Range – Operating (°C): -40° to +105°, -40° to +115°
Current – Maximum per Contact: 6.5A
