Description

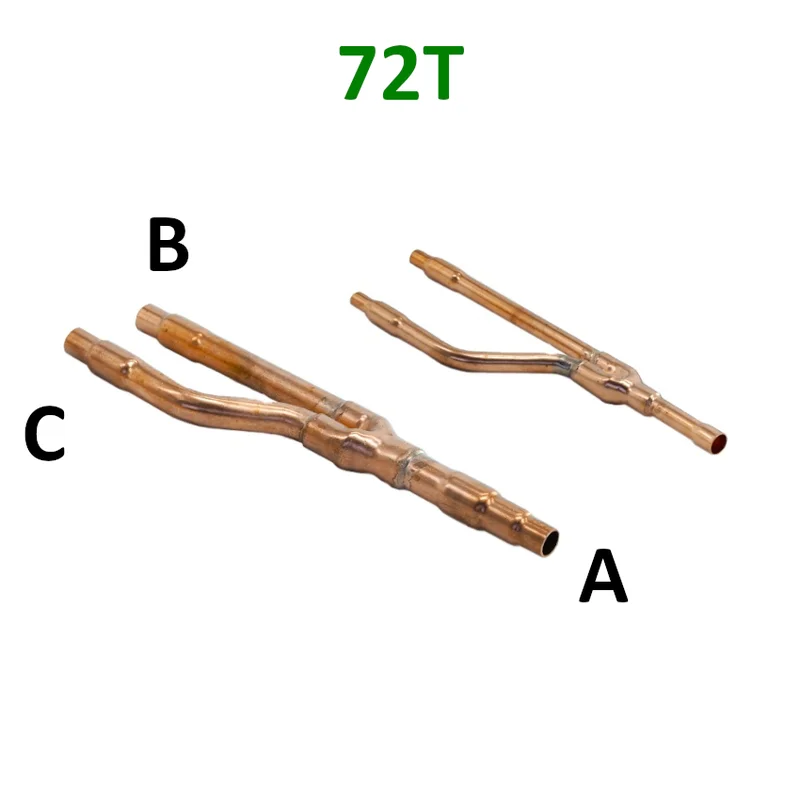

72T – Branch Joint VRV / VRF
Features:
The 72T branch joint is designed for use in VRV / VRF systems to effectively split or combine refrigerant flows. It supports a wide range of piping configurations for both vapor and liquid lines.
| 11T | Vapor Line | 19.05 / 15.88 | 15.88 / 12.70 | 15.88 / 12.70 |
| Liquid Line | 9.52 | 9.52 / 6.35 | 9.52 / 6.35 | |
| 22T | Vapor Line | 19.05 / 15.88 / 12.70 | 19.05 / 15.88 | 15.88 / 12.70 |
| Liquid Line | 9.52 | 9.52 / 6.35 | 9.52 / 6.35 | |
| 33T | Vapor Line | 19.05 / 22.22 | 19.05 / 15.88 | 15.88 / 12.70 |
| Liquid Line | 12.70 / 9.52 | 9.52 / 6.35 | 9.52 / 6.35 | |
| 37T | Vapor Line | 25.4 / 28.58 / 31.80 | 25.40 / 19.05 / 15.88 | 19.05 / 15.88 / 12.70 |
| Liquid Line | 12.70 / 15.88 | 12.70 / 9.52 | 12.70 / 9.52 / 6.35 | |
| 40T | Vapor Line | 31.80 / 38.10 | 31.80 / 28.58 / 25.40 | 25.40 / 19.05 / 15.88 |
| Liquid Line | 19.05 / 15.88 | 19.05 / 15.88 / 12.70 | 15.88 / 12.70 / 9.52 | |
| 72T | Vapor Line | 24.40 / 28.58 / 31.80 | 25.40 / 19.05 / 15.88 | 19.05 / 15.88 / 12.70 |
| Liquid Line | 12.70 / 15.88 | 12.70 / 9.52 | 12.70 / 9.52 / 6.35 |
Product code: 72T
