Description

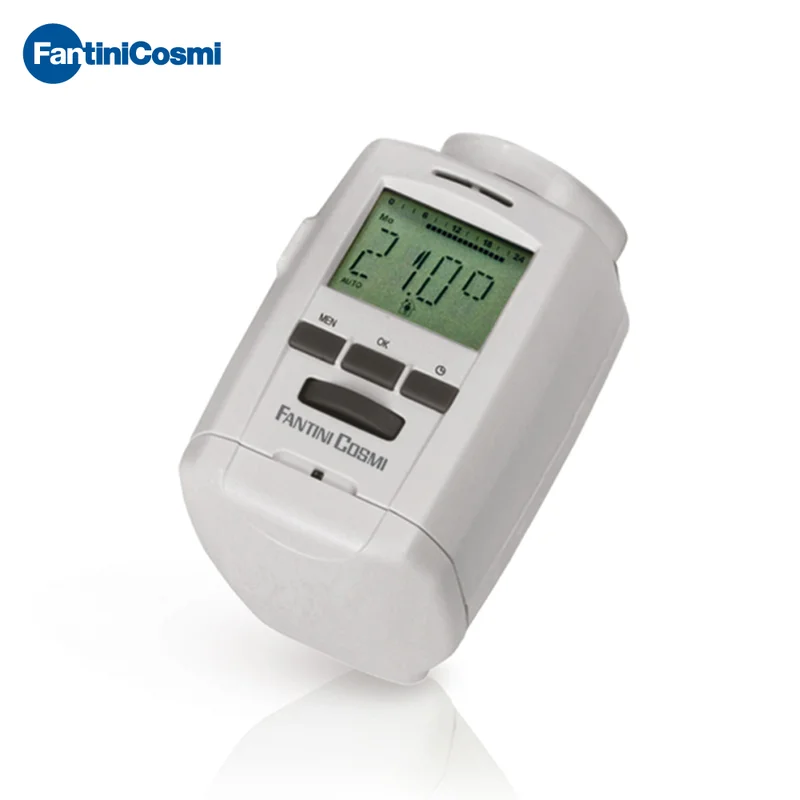

O62C PROGRAMMABLE THERMOSTATIC HEAD
Weekly programming
Powered by 2×1.5 V batteries
Description
The O62C electronic programmable thermostatic head is a technologically advanced, silent, and compact device, no larger than a standard thermostatic head.
The head snaps onto its standard M30x1.5 threaded ring nut.
Function keys, a rotary selector, and an LCD display allow easy menu navigation for programming and using the various functions.
To speed up installation, the O63P programmer can be used.
The O63P programmer is a USB key with resident software that allows the user to create, via PC, several weekly programming profiles to be later uploaded to O62C heads through the micro-connector provided.
Installation
063C: Programmer for O62C electronic thermostatic head
Possibility to define up to 10 different profiles/programs with radiator location description;
For each profile, it is possible to:
Set weekly programming with 4 daily activation periods
Define comfort and economy/night temperature set-points
Define holiday/vacation periods
Print a summary of the programmed profile
Micro-connector for connection to the O62C head
PC data interface: USB 1.1 or 2.0
System requirements: Windows XP or later
Features
Dimensions comparable to a standard thermostatic head
Weekly programming with 4 daily activation slots
Three temperature set-points: comfort, economy/night, and frost protection
Automatic or manual operation
Boost function
Temporary shut-off function for open windows
Key lock function (child safety)
Weekly anti-limescale actuation function
Uses two 1.5 V AA alkaline batteries with over 3 years of autonomy
Standard M30x1.5 fitting, various adapters available for other valve types
Micro-connector for O63P programmer connection
Programmable via local menu or using O63P programmer
Compatible with the following thermostatic valve brands:
Without adapters:
Heimeier, MNG, Junkers, Landis&Gyr
Duodyr, Honeywell-Braukmann
Oventrop, Schlösser, Simplex, Valf Sanayii, Mertik Maxitrol, Watts
Wingenroth (Wiroflex), R.B.M., Tiemme, Emmeti, Jaga, Watts-Cazzaniga
With adapter (sold separately):
CALEFFI
Product code: O62C
