Description

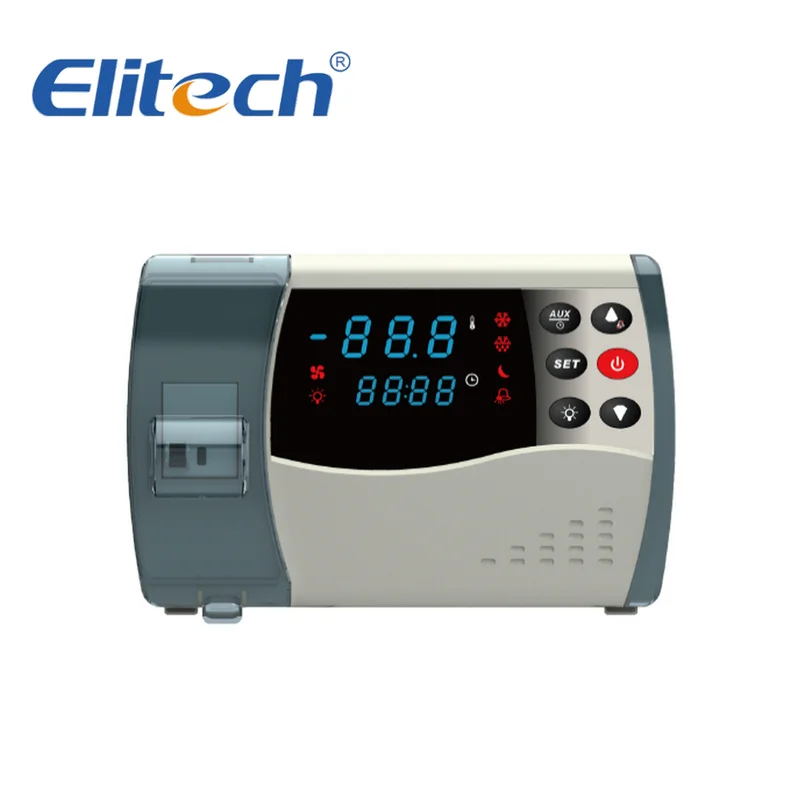

ECB-1000Plus – ELITECH Multifunctional Electric Control Panel for Refrigeration Chambers
Features:
The ECB-1000Q is widely used for small and medium-sized refrigeration chambers and is equipped with refrigeration, defrosting, fan, light control, alarm, and clock functions.
The large screen allows you to display all the necessary information and manage heavy loads up to 3HP directly, thanks to the integrated relay. The display includes LED icons. It also features password protection to prevent staff from accidentally tampering with the device.
The Real-Time Clock schedules and sets defrost times; it also has an effective defrosting function and a nighttime energy-saving feature.
Here are the main features of the ECB-1000Q:
Technical Parameters: Power Supply: 220VAC±10%, 50/60Hz
Power Consumption: Less than 5W
Temperature Measurement Range: -45°C~99°C
Accuracy: ±1°C T
Temperature Control Range: -40°C~90°C
Resolution: 0.1°C/1°C or 1F
Relay Contact Capacity: Compressors up to 50A/240VAC
Compressor Contact Capacity: 3P Defrost – Max 8A/220VAC, Fans – Max 5A/220VAC
Fan Contact Capacity: Light up to 500W, Max 5A/220VAC. Light Contact Capacity: 300W
Alarm: 5A/220VAC; Storage Temperature: -20°C~75°C
Operating Temperature: -5°C~60°C
Sensor Type: NTC(10K/25°C, B-3435K)
Product code: ECB-1000Plus
