Description

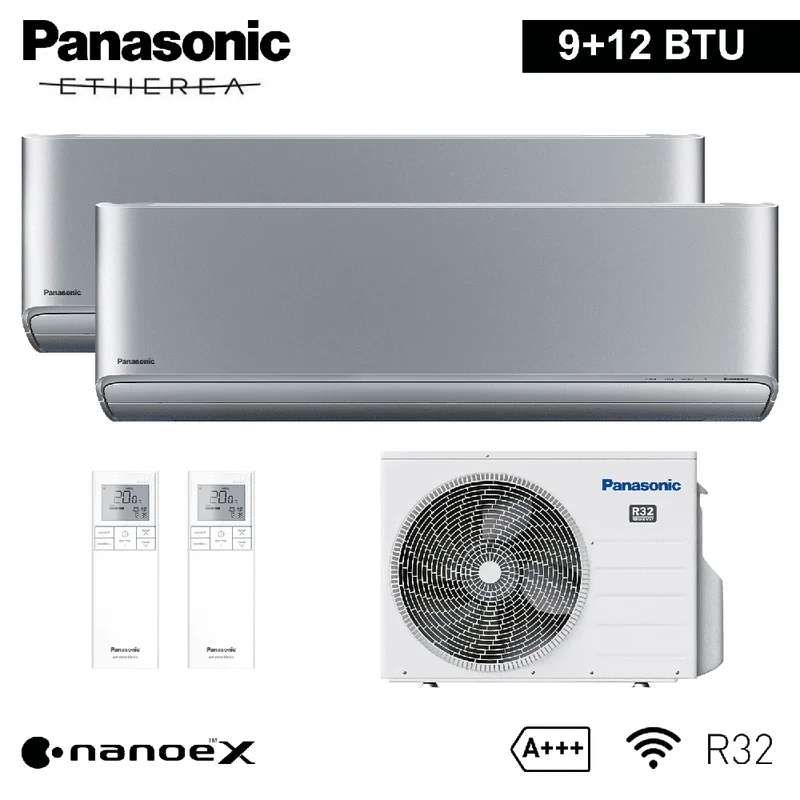

Panasonic dual split air conditioner ETHEREA SILVER 9000+12000 btu A+++ WIFI NanoeX General features:
High-efficiency dual split system with Inverter+ technology
Panasonic ETHEREA Silver ZKE series indoor units with Nanoe X purification
Built-in WIFI for remote control via the Panasonic Comfort Cloud app
Eco-friendly R32 gas with low environmental impact
A+++ energy class in cooling
Quiet operation with Quiet and Super Quiet modes
Compatible with voice controls and BMS systems
Model:
Series: Panasonic ETHEREA Silver ZKE
Indoor unit model and BTU: CS-XZ25ZKEW (9,000 BTU) CS-XZ35ZKEW (12,000 BTU)
Outdoor unit model: CU-2Z41CBE
Type: Air-to-air multisplit heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): 9.10 / 4.80 (CU-2Z41CBE data PDF)
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption kWh/year: 158 kWh/a (cooling) 1021 kWh/a (heating)
Performance:
Cooling capacity (kW): 4.10 kW (CU-2Z41CBE outdoor unit)
Heating capacity (kW): 4.60 kW (CU-2Z41CBE outdoor unit)
Indoor unit sound pressure MAXMIN (dB(A)): CS-XZ25ZKEW: 41 / 21 dB(A) CS-XZ35ZKEW: 45 / 21 dB(A)
Outdoor unit sound pressure MAXMIN (dB(A)): 48 / 50 dB(A) (cooling/heating PDF)
Cooling power input kW: 0.94 kW
Heating power input kW: 0.93 kW
Electrical data:
Power supply ( / V / Hz): 1 / 230V / 50Hz
Technical specifications:
Refrigerant gas: R32
Liquid / gas pipe diameter (inches): 1/4″ 3/8″
Maximum piping length with standard charge: 20 m
Maximum piping length with additional charge: up to 30 m total
Maximum height difference (outdoor unit above): 10 m
Operating limits (outdoor temperature): Cooling -10°C / +46°C Heating -15°C / +24°C
Dimensions and weight:
Indoor unit CS-XZ25ZKEW: 295 × 870 × 229 mm 10 kg Indoor unit CS-XZ35ZKEW: 295 × 870 × 229 mm 11 kg
Outdoor unit CU-2Z41CBE: 619 × 824 × 299 mm 37 kg
Product code: ETHEREA-XZ-R32-Z2535(41)
