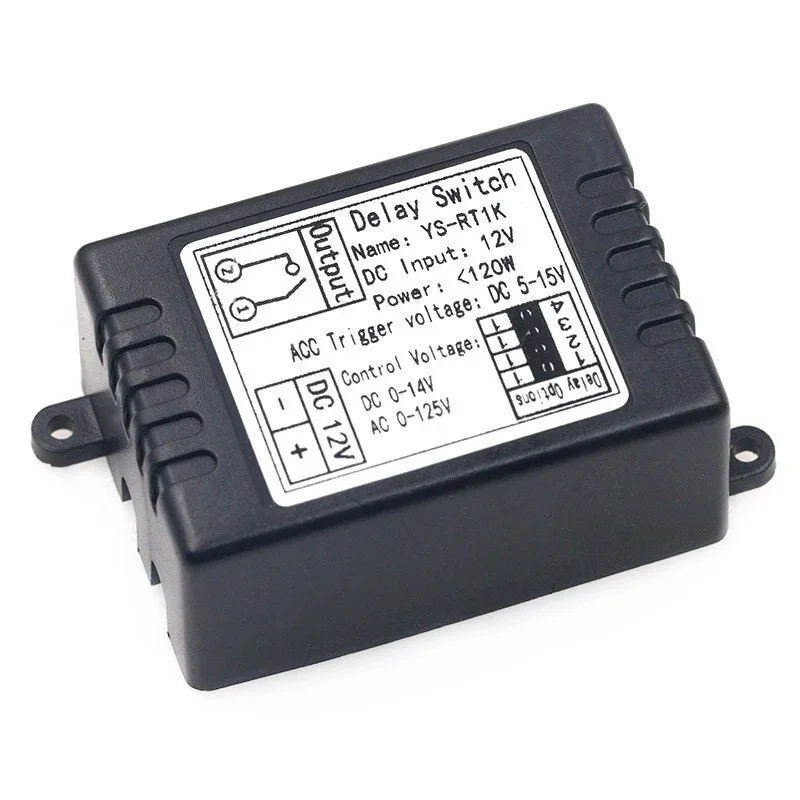

Description
After connecting to voltage, the relay is closed and opens after a set time delay.
Setting the delay using DIP.
Adjustable switching time from 300 ms to 60 seconds.
Supply voltage: 12V DC (5V-15V DC)
Operating current: 10 mA
Relay type: Songe SRA-12VDC-CL
Max. switching voltage: 125V AC, 14V DC
Max. switching current: 10 A
Operating temperature: -20 to 70°C
Dimensions: 50x35x22 mm
Weight: 20g
