Description

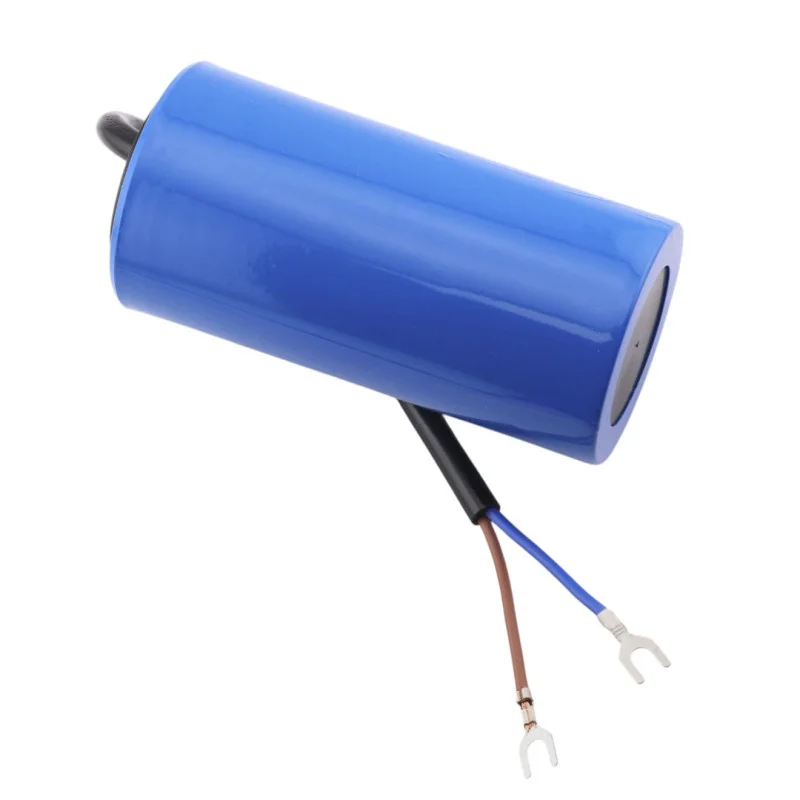

The CD60 series electrolytic capacitor is designed for AC applications where it is used as a starting capacitor. With a nominal capacity of 250 µF and a voltage rating of 450 V AC, it is suitable for single-phase motors and other devices powered by a 230 V AC network.
Technical specifications
Type: electrolytic capacitor for AC applications (CD60 series)
Capacity: 250 µF
Rated voltage: 450 V AC
Rated frequency: 50/60 Hz
Dimensions: 100 × 50 mm
Case design: plastic case
Connection: terminals with eyelets for screw fixing
Functions and features
Designed for work in alternating current (AC) circuits
Suitable for starting and supporting the operation of single-phase asynchronous motors
Pinned design allows for a solid and mechanically resistant connection
Cylindrical housing facilitates mounting in brackets and clamps
Ideal for
Motor start capacitors (compressors, pumps, fans)
Service and repair of engine units and industrial equipment
Devices powered from a 230 V AC mains where a start/run capacitor is required
Package contents
1× capacitor CD60 250 µF / 450 V AC
Why choose this product?
Clearly defined basic parameters for AC applications: 250 µF and 450 V AC
Dimensions 100 × 50 mm for standard installation in motor and starting circuits
Practical connection with screw-on eyelets
Installation and operating instructions
Before replacing, verify the required capacity and voltage class according to the original capacitor and the device diagram.
Ensure mechanical fastening to prevent vibration stress on the terminals.
After installation, check the tightness of the connections and the condition of the insulation of the wires around the capacitor.
Safety notice
Working with 230-450 V AC is dangerous. Installation should only be carried out with the power disconnected and by a qualified person.
Before handling, verify the absence of voltage and residual charge in the circuit.
Use only in applications for which the capacitor is intended and comply with the equipment’s capacitance and voltage rating requirements.
