Description

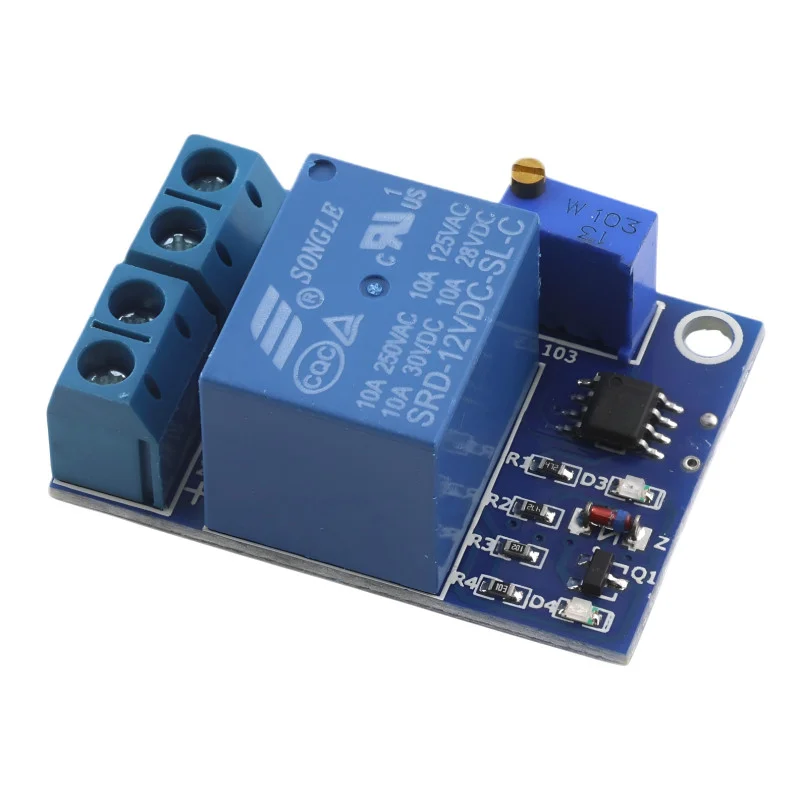

The undervoltage protection module is used to automatically disconnect the load when the battery voltage drops below a set value. It protects 12V batteries from deep discharge and thus significantly extends their service life. After the voltage is restored, the load is automatically reconnected. Ideal for power systems, solar installations, automotive projects or DIY applications.
Technical specifications
Model: YX-X0001
Supply voltage: DC 12V
Maximum load current: 10 A (resistive load)
No-load consumption: < 10 mA
Operating temperature range: 40 °C to +85 °C
Dimensions: 40 × 29 × 19 mm (L × W × H)
Weight: 16g
Relay type: 1-channel 12 V DC
Functions and features
It automatically disconnects the load when the voltage drops below the set limit and reconnects it when it recovers.
Adjustable undervoltage limit using a trimmer – turning clockwise increases the threshold value, turning counterclockwise decreases it.
Protection of batteries against deep discharge and loss of capacity.
Optical signaling via LED: indication of power supply and undervoltage status.
Simple connection input from battery, output to load.
Compatible with Arduino, STM and other microcontroller modules.
Ideal for
12V lead-acid, Li-ion or LiFePO batteries
Solar power systems and island installations
Power protection for sensitive electronics
Car and caravan systems
DIY projects and Arduino solutions
Package contents
1× 12V undervoltage protection module (YX-X0001)
Why choose this product?
Reliably protects the battery from damage caused by deep discharge.
Easy threshold setting using a rotary potentiometer.
Automatic power recovery after voltage increase without manual intervention.
Wide temperature range and long service life.
A suitable addition for projects with Arduino or other control modules.
