Description

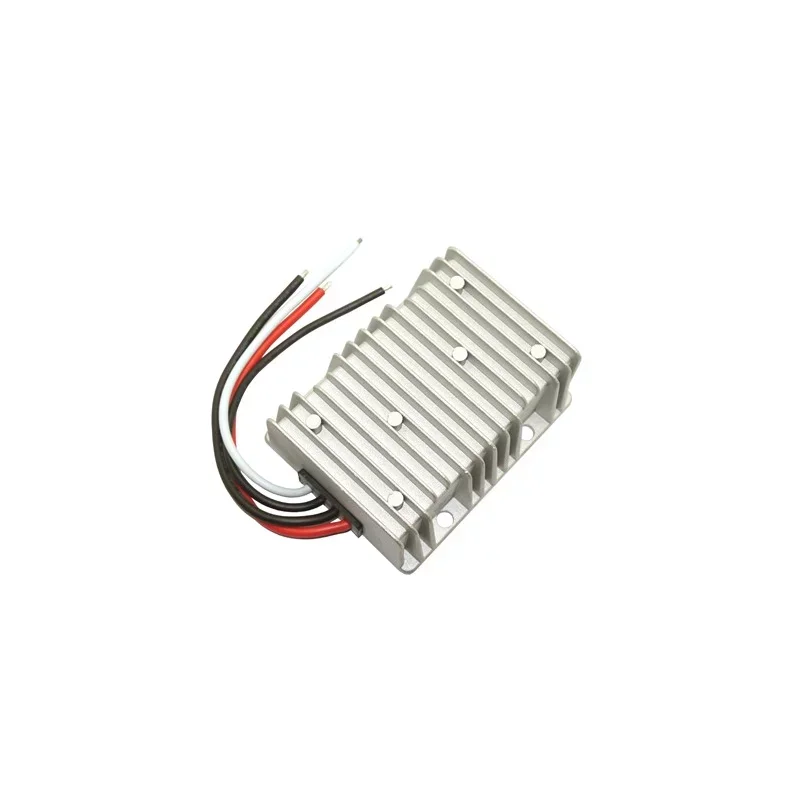

High-performance DC/DC converter designed to convert voltage from a wide input range of 836V DC to stable 13V DC. Thanks to its robust design, high efficiency and IP68 protection, it is suitable for demanding industrial applications, vehicles and systems with higher energy demands.
Technical specifications
Type: DC/DC converter
Input voltage: 8-36V DC
Output voltage: 13V DC
Maximum output current: 25A
Output power: 325W
Efficiency: up to 95%
Electrical insulation: non-isolated design (common input and output ground)
Protections: overvoltage, overload, short circuit, overheating
Cooling: passive (aluminum heatsink)
Operating temperature: -40 to +80 °C
Protection: IP68
Dimensions: 125 × 105 × 52 mm
Weight: 1200g
Certification: CE, RoHS
Functions and features
Stabilization of output voltage 13V DC over a wide input voltage range
High efficiency to reduce losses and heating at higher loads
Robust design with passive cooling for operation in harsh conditions
IP68 protection for use in dusty and humid environments
Integrated protections for increased operational reliability
Ideal for
Powering 12/13V devices in vehicles and mobile applications (24V/36V systems)
Industrial installations with variable DC power supply
Powering electronics in harsh outdoor environments
Systems requiring higher currents at stable DC voltage
Package contents
DC/DC converter
Why choose this product?
Wide input range of 836V DC for compatibility with various power systems
13V DC output up to 25A for higher power applications
IP68 protection and passive cooling for operation in harsh conditions
Integrated protection functions (overvoltage, overload, short circuit, overheating)
CE and RoHS compliance
Installation and operating instructions
Before installation, verify that the input voltage of the power supply is within the range of 836V DC.
Observe the correct polarity of the connection and use wires with an appropriate cross-section for current up to 25A.
Provide suitable location for heat dissipation from the aluminum body of the inverter, especially under continuous load.
It is recommended to fuse the input and output according to the requirements of your application.
Safety notice
Perform installation with the power disconnected.
Incorrect polarity connection or insufficient fuse protection can lead to damage to the device and the connected load.
The inverter may become hot during operation; ensure that it is not covered or in contact with flammable materials.
