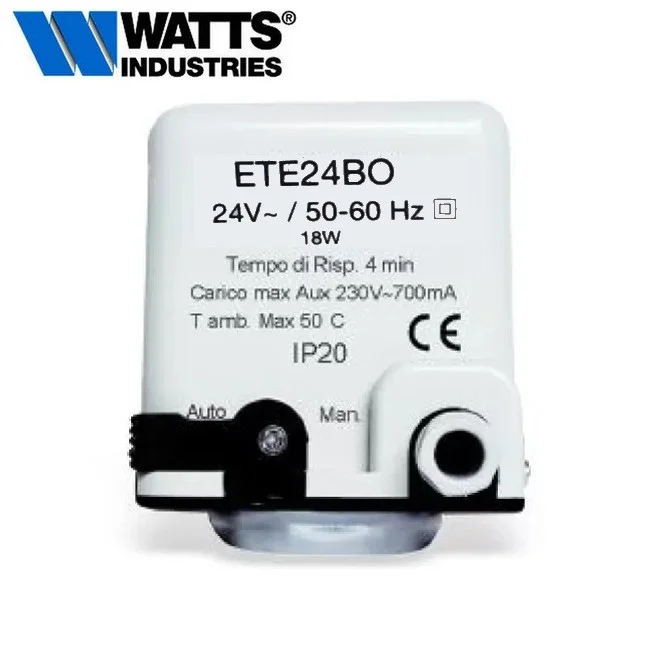

Watts Cazzaniga ETE24BO Electrothermal Actuator for Zone Valve VU 24V
Description:
The electrothermal actuator with on/off action for VU Series zone valves. It features a normally open (NA) auxiliary micro switch for additional controls (e.g., pump, metering). Bayonet connection to the valve body. Manual control device.
Features:
Power consumption: 18W
Stroke: 4mm
Actuator force: 250N
Positioning time: 4 min
Power supply: 24V
Protection: IP20
Compliant with EN60730-1:95, EN60730-2-8:95, and subsequent amendments. Complies with EMC Directive 2014/30/EU.
Product Code: ETE24BO
